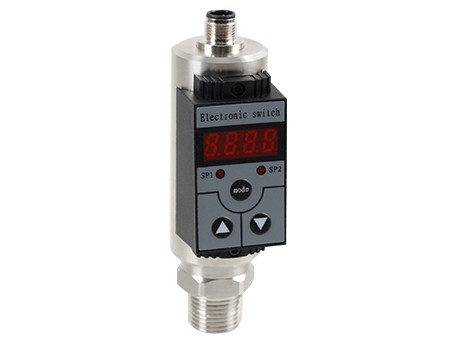

Electronic Pressure Switch

Product Code XN PS300
Description Pressure Sensor / Pressure Switch
Connection CE
Model: PS300S/ PS300M/PS300A1/PS300R
Pressure Range: -1 Bar-1 Bar; 0-0.1 Bar.....1000 Bar / 0-2 Psi…15000 Psi Optional
Pressure Type: Gauge pressure; Absolute pressure; Sealed gauge pressure optional.
Safe Overload: 150% F.S.
Burst Pressure: 300% F.S.
Accuracy: ≤ ±0.5%F.S Including non-lin., rep. and hys. Optional
Display Units Accuracy: ≤ ±0.1%F.S
Display Units Span: -1999~9999
Total Error Band: 0...50 °C max. ±0.5 %FS -10...70 °C max. ±1.0 %FS
Long Stability: Standard: 0.1%F.S±0.05%
Working/Storage Temp: -20℃~80℃
Tempe Compensation: -10℃~60℃(standard)
Medium compatible: Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel
Output: Two switches output; One switch with 4~20mA or RS485 as output signal; Two switches with 4~20mA or RS485 as output signal optional
Power Supply: 12~32V DC
Switch type: PNP, NPN optional
Load Resistance: <24Vdc 1.2A
Max powerconsumption: <1w
Zero Temp. Drift: 0.03%FS/℃(≤100kPa), 0.02%FS/℃(>100kPa)
Body materials: 304 stainless steel; 1Cr18Ni9Ti stainless steel optional
Material of diaphragm: 316L Stainless steel
Filling oil: Silicon oil; Fluorocarbon oil (Oxygen Services)
Electronic connection: Plug: M12 (4-poles) Type IP65; M12*1-5P; DIN43650 optional
Mechanical vibration: ±20g
Pressure connect port: G1/4"male, G1/2"male, 1/8"NPT male, 1/4"NPT male, 1/2"NPT male and female optional. (by customized)
Dimension: See below drawing
Water Proof: IP65
Response time: ≤5ms
Endurance: ≥1 million cycles, 0…100 %FS at 25℃
More Information

PS300 Electronic Pressure Switch is a pressure measurement switch with LED display. The isolation-based silicone oil-filled diaphragm is used as a sensing component. It has the advantages of high precision, small size, easy operation and simple installation. Therefore, it is widely used in pressure control and automatic process control systems in chemical, mechanical and electrical systems.

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
