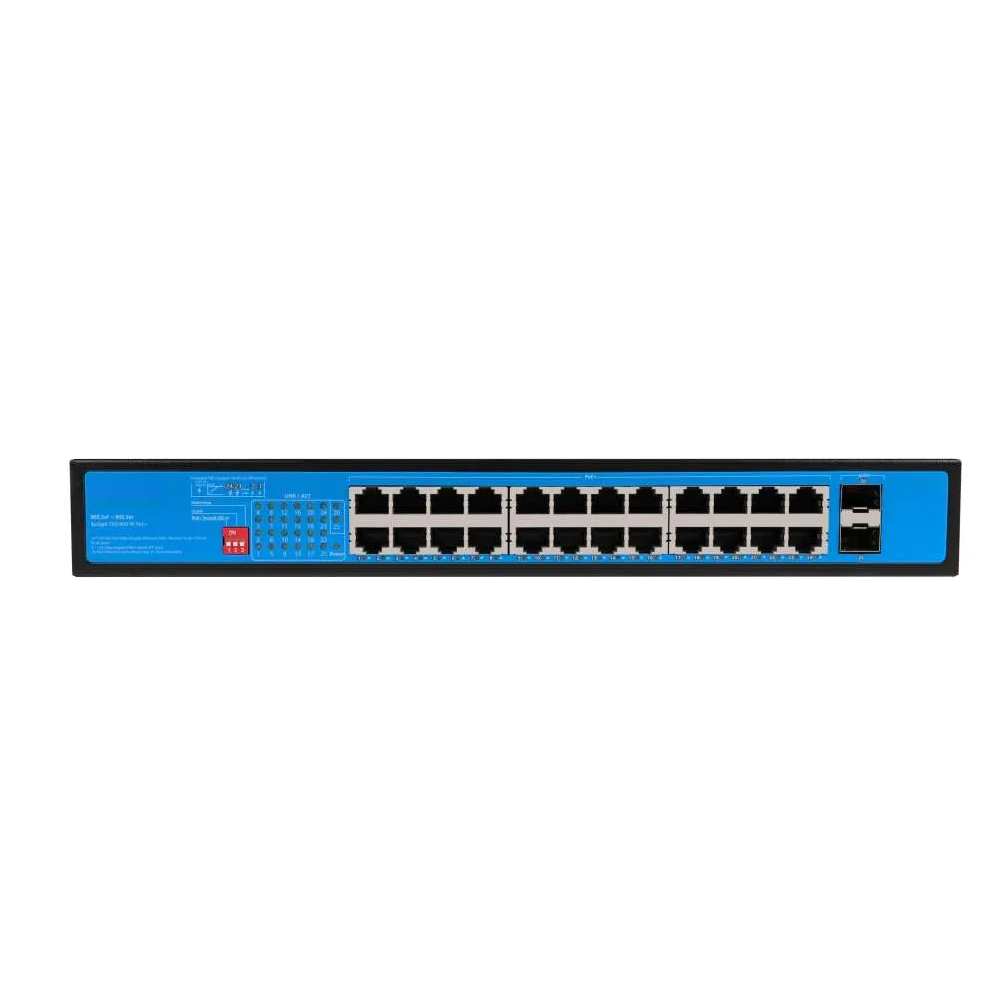

Best 26 Ports Full Giga PoE Switch with 2 Gigabit*SFP 300W

Product Code XC-S1926CG-AP
Description Best 26 Ports Full Giga PoE Switch with 2 Gigabit*SFP 300W
Connection CE
Model XC-S1926CG-AP
POE Port Port 1-24 support PoE @ IEEE802.3af/at
Feature Dynamic LED indicator light for PoE and network working status and troubleshooting;
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100/1000 Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
Forwarding Mode Store and Forward
Switching Capacity 52Gbps (Non-blocking)
Forwarding Rate@64byte 38.69Mpps
Buffer Memory 4M
Twisted Pair Transmission 10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter)
Optical Fiber Cable Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM.
Power Supply Pin Default: 1/2(+),3/6(-)
Max / Average Power Per Port 30W/15.4W
Total PWR / Input Voltage 300W (100-240V)
Power Consumption Standby:<15W; Full load:<240W
Power Supply Built-in power supply, AC 100~220V 50-60Hz
LED Indicator Power indicator: PWR (green); Network indicator: 1-24/G1-2 (green); POE indicator:PoE (green)
Operation TEMP/Humidity -20~+55°C;5%~90% RH Non condensing
Storage TEMP /Humidity -40~+75°C;5%~95% RH non condensing
Dimension (L*W*H) 330*204*44mm
Net /Gross Weight <3kg / <4kg
Installation method desktop type, wall mounted,19-inch 1U cabinet installation
protection level IP30
Certification CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 21,500.00 21500.0 INR ₹ 21,500.00

₹ 21,500.00
