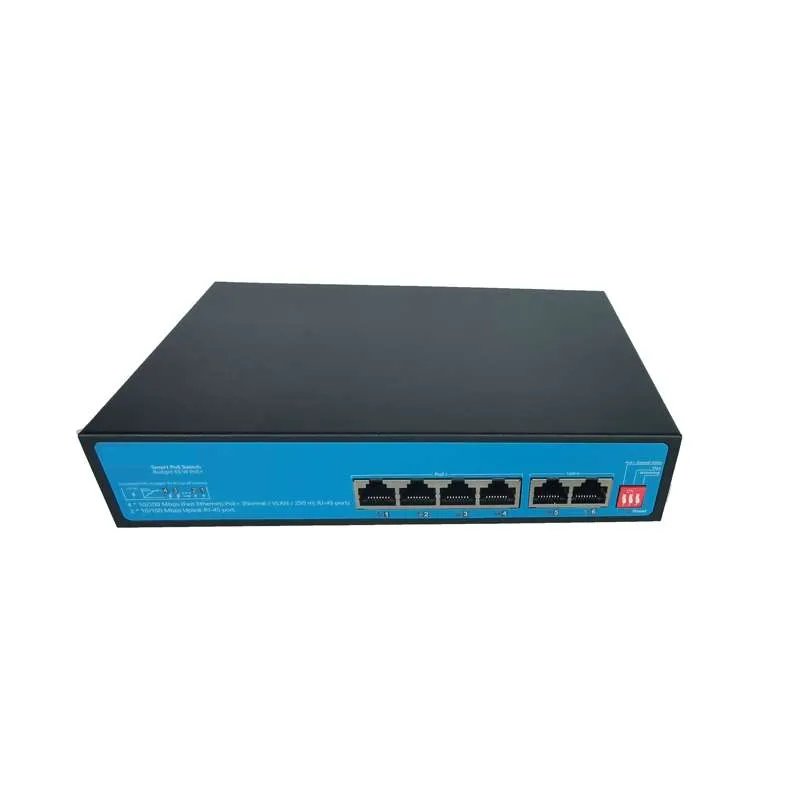

4 Port 100M PoE Switch with Build in Power Supply

Product Code XC-S1806CF-AP
Description 4 Port 100M PoE Switch with Build in Power Supply
Connection CE
Fixed Port 4*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data)
POE Port Port 1-4 support PoE @ IEEE802.3af/at
Network Protocol IEEE 802.3 Ethernet Media Access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000BASE-X Gigabit Ethernet (fiber) IEEE 802.3af powers Ethernet devices through Ethernet data pairs or devices IEEE 802.3at implements high-power power supply for Ethernet devices through Ethernet data line pairs or devices IEEE 802.3x flow control
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature Store and Forward (Full Wire Speed)
Forwarding Mode 0.89Mpps
Buffer Memory 768K
Twisted Pair Transmission 10BASE-T:Cat5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Supply Pin Default 1/2(+), 3/6(-)
MAX / AVERAGE Power Per Port 30W/15.4W
Total PWR / Input Voltage 65W (52VAC)
Power Consumption Standby:<2W; Full load:<60W
LED Indicator Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act)/ (Green); POE indicator: PoE (Orange)
Power Supply Build-in power adaptor AC100~240V 50-60Hz,120W
Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Dimension (L*W*H) 195*130*40mm
Net /Gross Weight <0.8kg / <1.2kg
Installation method desktop type ,wall mounted
Port lightning protection / level Port lightning protection : 4KV 8/20us; Protection level: IP30
Certification CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days

₹ 2,310.00 2310.0 INR ₹ 2,310.00

₹ 2,310.00
